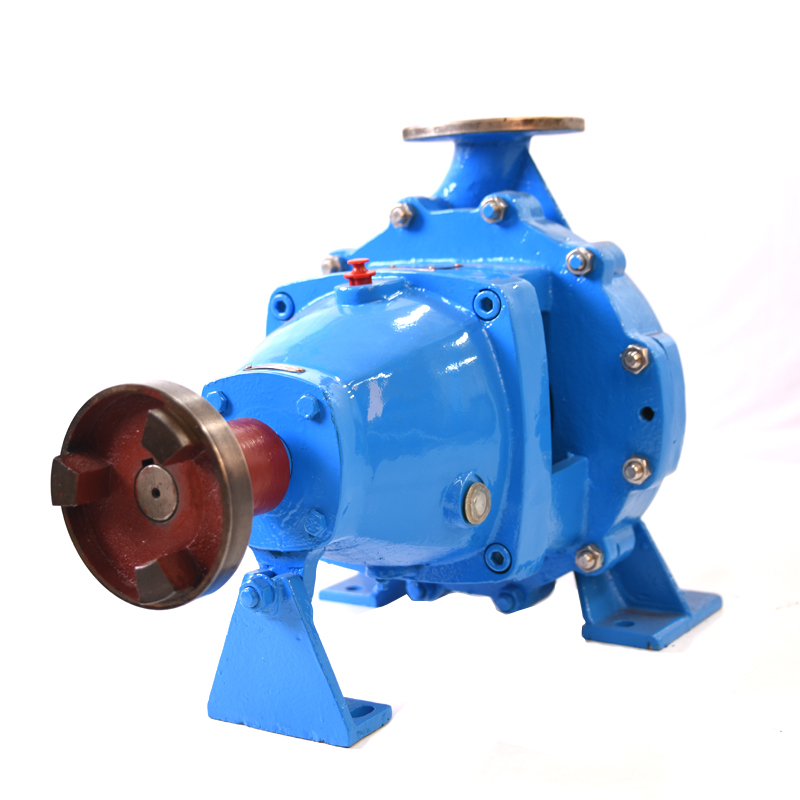

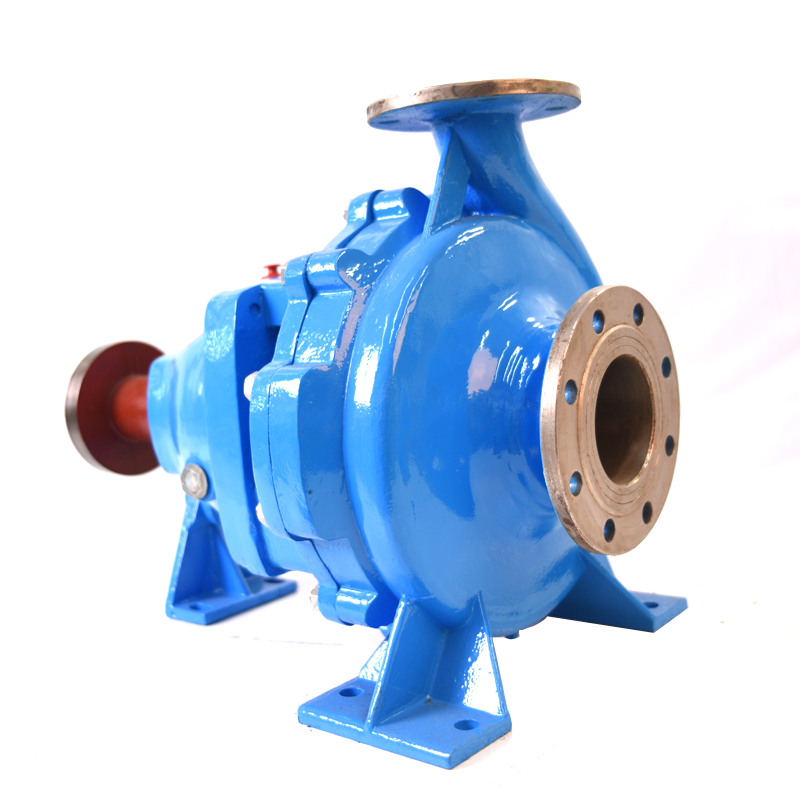

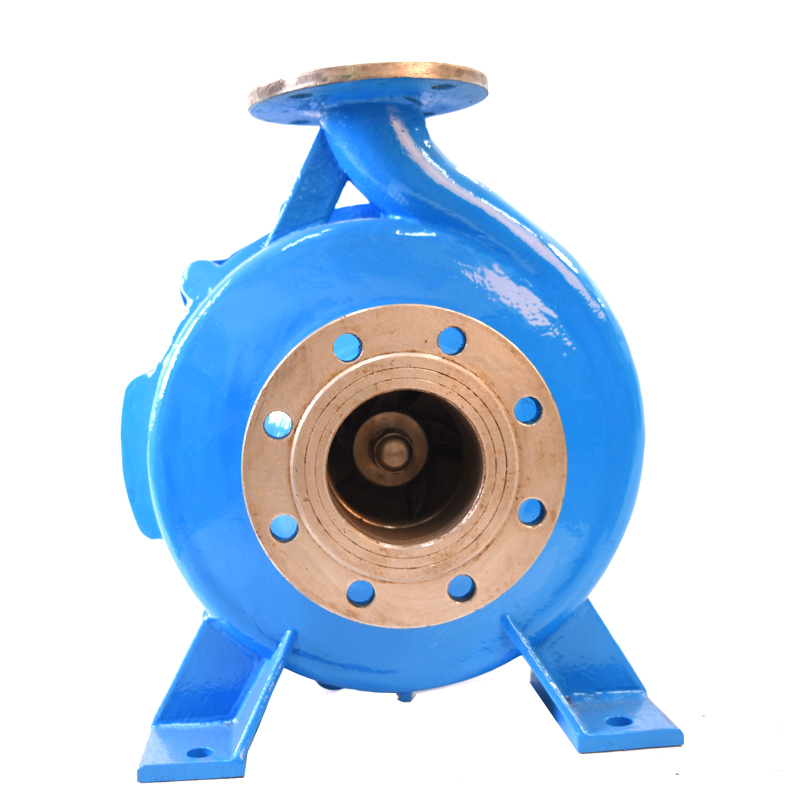

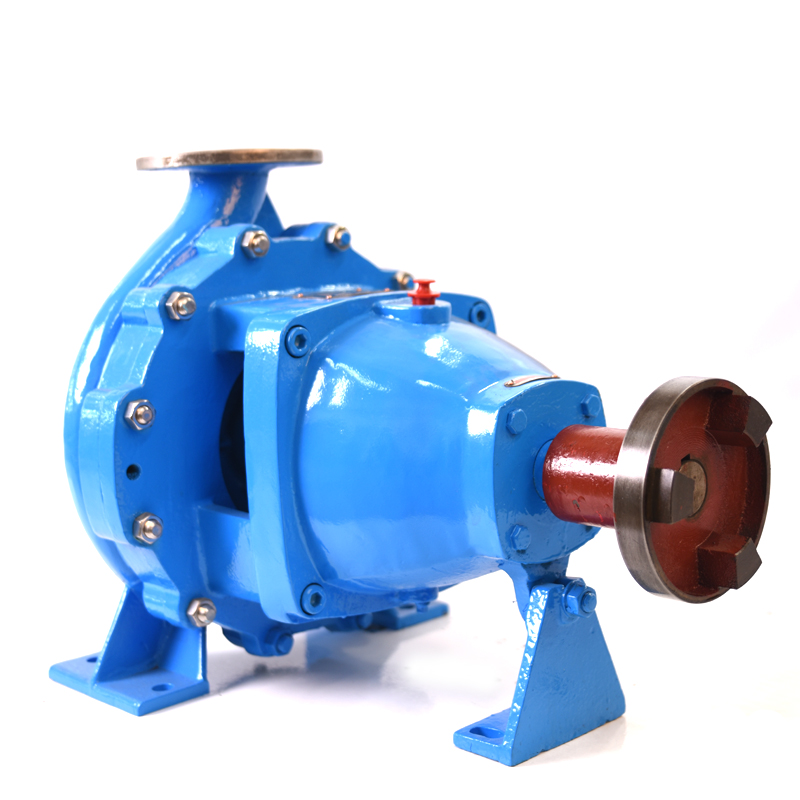

IH Series Stainless Steel Centrifugal Pump

The IH series single stage end suction centrifugal pump have the feature of anti-corrrosive, it could be used to transfer clean liquid, drink and wine, chemical liquid, hot liquid, etc. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge. This series pump is widely used in chemical industry, food & drink industry, civil water supply, drug industry, paper & pulp industry, etc.

Main Performance Data

Flow: 6 - 480 m3/h

Delivery Head: 5 - 125m

Outlet Dia.: 32 - 150mm

Working Pressure: ≤ 1.5Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 105℃

Model Instruction
E.G.: IH100-80-160A
IH: Single stage end suction pump (for clean & corrosive liquid)
100: Inlet diameter is 100mm
80: Outlet diameter is 80mm
160: Rate impeller diameter is 160mm
A(B,C....):  Impeller code

Applications

Industrial water supply and discharge,

Food, wine, drink, drug industry,

Clean & Hot water transferring,

Chemical liquid transferring,
Sea water desalination & transferring,

Factory & residential drink water supply,

Fibre processing industry, Paper & pulp industry

Sugar industry, Heading & Air conditioning,
Enviromental protection engineering.

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
